When constructing concrete structures, one of the critical aspects to ensure the final product’s quality and shape is the formwork. Formwork is a temporary mold that holds the wet concrete in place until it hardens, and for many small to medium construction projects, using wood lumber and panels as formwork material remains a practical and cost-effective choice.
In this blog post, weāll explore how to design formwork using wood lumber and panels, covering essential considerations, types of lumber, and best practices.
For a deeper understanding of the types of formwork, you can read more about the different Types of Formwork Systems
1. Understanding the Role of Formwork
Concrete is poured in a liquid state, making formwork essential to mold it into the desired shape, dimensions, and surface finish. Proper formwork design also ensures:
- Structural stability: The formwork must resist the pressure of wet concrete and prevent leaks.
- Safety: Workers and the job site are protected from collapse or accidents.
- Ease of Removal: Once the concrete has set, the formwork should be easily removable without damaging the concrete surface.
Key Characteristics of Good Formwork
- Strong and rigid to handle the load and weight of wet concrete.
- Easy to assemble and dismantle.
- Economical, with reusable components to reduce costs.
- Accurate to ensure the final structure matches the design specifications.
You can explore more about the Principles of Formwork DesignĀ to ensure structural integrity and cost-efficiency.
2. Choosing the Right Wood Lumber for Formwork
Wood is a common formwork material due to its availability, versatility, and ease of handling. However, choosing the right type of wood and designing the formwork structure requires careful planning.
For a broader understanding of different types of wood, check out thisĀ Guide to Types of Lumber for Construction
Factors to Consider in Lumber Selection:
- Strength: The lumber should be strong enough to withstand the pressure of wet concrete. Depending on the thickness and height of the pour, the formwork needs to resist significant lateral forces.
- Durability: The wood should withstand moisture without warping or disintegrating, especially in humid environments.
- Cost-effectiveness: Depending on the size of the project, the lumber should be cost-effective, especially if the formwork needs to be reused multiple times.
Common Types of Lumber for Formwork
- Pine or Fir Lumber: Softwoods like pine and fir are often used in construction formwork. They are lightweight, relatively strong, and economical.
- Plywood Panels: Plywood is used for the larger surfaces (e.g., walls or slabs). It offers a smooth surface that reduces the likelihood of the concrete sticking to the wood.
- Hardwoods (e.g., oak): Used less frequently, hardwoods are more durable but tend to be more expensive.
If you’re looking for professional assistance in designing reliable and cost-effective formwork for your concrete projects, we offer expert Formwork for Concrete Design Services. Whether you’re working on residential, commercial, or industrial construction, our team specializes in creating tailored formwork solutions using wood lumber and panels. We ensure every project meets high standards of quality, safety, and efficiency. Contact us today to learn how we can support your next concrete construction endeavor!ā
3. Key Considerations When Designing Wooden Formwork
The design of wooden formwork should account for the following factors to ensure a successful concrete pour:
3.1 Load and Pressure Calculations
Concrete exerts significant lateral pressure on the formwork when wet. This pressure increases with the depth of the pour and the rate of concrete placement. Designers must calculate:
- Lateral pressure: Concrete’s pressure acts horizontally, pushing against the vertical form faces. This requires strong panels and adequate bracing.
- Live and dead loads: In addition to the weight of the concrete, formwork must support the weight of workers, equipment, and potential environmental forces like wind.

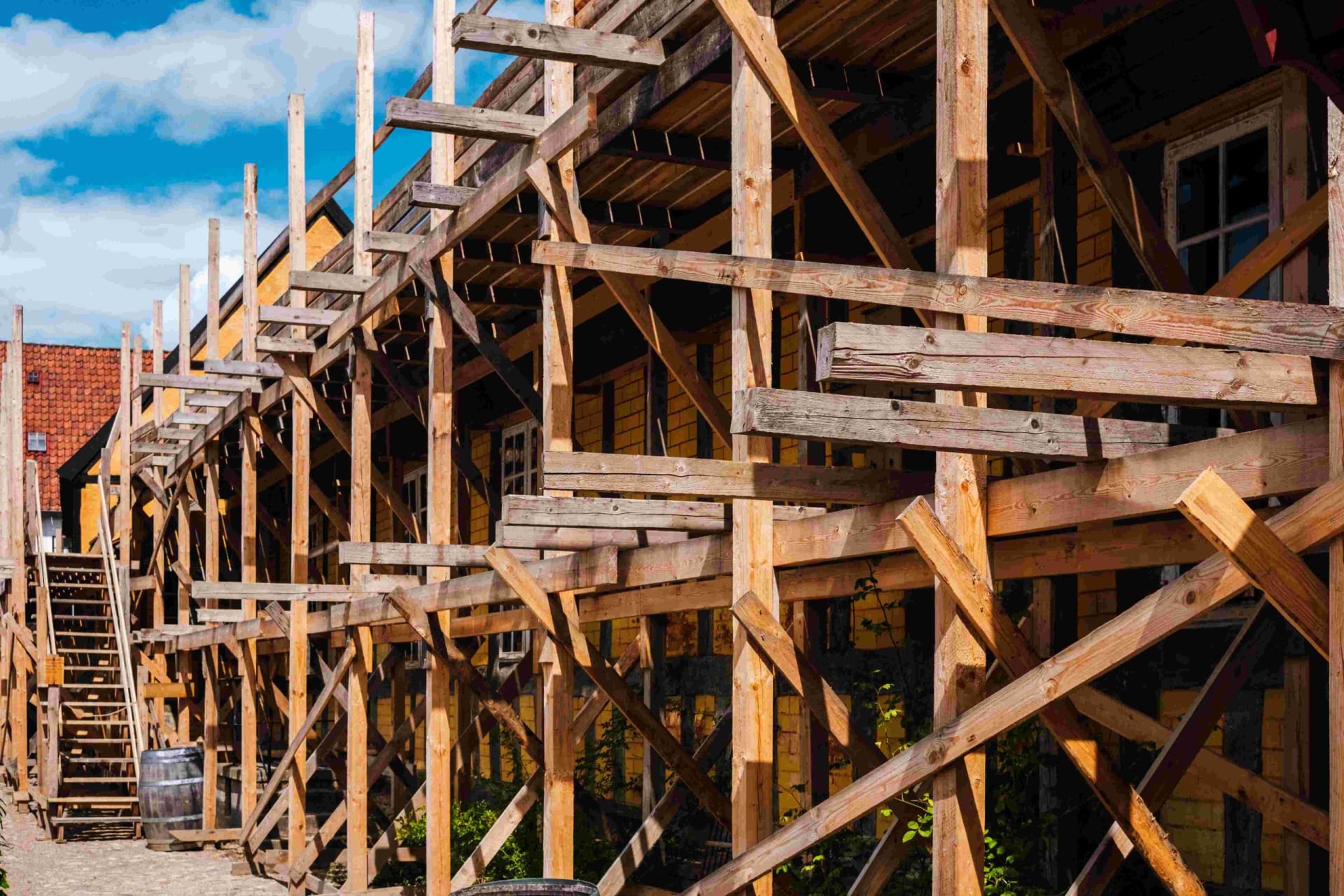

3.2 Bracing and Supports
Proper bracing ensures the formwork remains stable under load. Bracing should be placed both horizontally and vertically, and in critical areas such as corners, to maintain rigidity and prevent movement during pouring.
- Studs: Vertical lumber members, often placed at regular intervals to hold the plywood panels in place.
- Walers: Horizontal supports that tie the studs together and provide additional strength.
3.3 Formwork Tightness and Alignment
- Joints and Seams: Ensure there are no gaps between wood panels, as concrete can seep through small openings, causing bulging or surface defects. Joints between plywood sheets should be tight but allow for slight expansion due to moisture.
- Alignment: It is crucial to ensure that the formwork is perfectly aligned with the desired dimensions and levels of the concrete structure. Small errors in alignment can lead to defects in the final product that may be difficult or costly to fix.
3.4 Formwork Release Agents
Applying release agents (such as oil or special chemical coatings) to the surface of the formwork helps prevent concrete from sticking to the wood, making it easier to remove the formwork once the concrete has cured. This reduces damage to the wood, making it reusable, and improves the concrete’s surface finish.
3.5 Spacing Between Studs and Walers
The spacing of studs and walers largely depends on the thickness of the concrete and the size of the formwork. For example:
- For walls up to 4 feet high, studs may be spaced at 16 inches apart, while for taller walls, closer spacing might be necessary.
- The thickness of plywood panels also influences spacingāthicker panels allow wider spacing of the studs.
4. Conclusion
Designing formwork using wood lumber and panels is a practical solution for many concrete projects, offering flexibility, affordability, and ease of assembly.
By considering load calculations, proper bracing, tightness, alignment, and the right type of lumber, you can create strong, reliable formwork that ensures your concrete structure turns out as intended.
Whether you are building walls, columns, or slabs, thoughtful design and careful execution of wooden formwork can significantly impact the quality and efficiency of your project.
